| Product Attribute | Attribute Value |
|---|---|
| Part Number | FDS6690A |
| Manufacturer | AMI Semiconductor/onsemi |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |

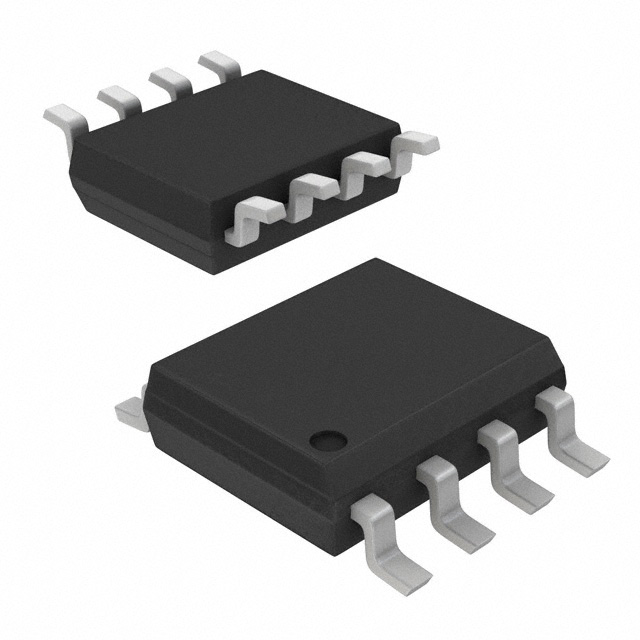

| Supplier Device Package | 8-SOIC |
| Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 12.5mOhm @ 11A, 10V |
| Power Dissipation (Max) | 2.5W (Ta) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) (Max) @ Vds | 1205 pF @ 15 V |
| Gate Charge (Qg) (Max) @ Vgs | 16 nC @ 5 V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) |
| Base Product Number | FDS6690 |
