| Product Attribute | Attribute Value |
|---|---|
| Part Number | FDB075N15A |
| Manufacturer | AMI Semiconductor/onsemi |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |

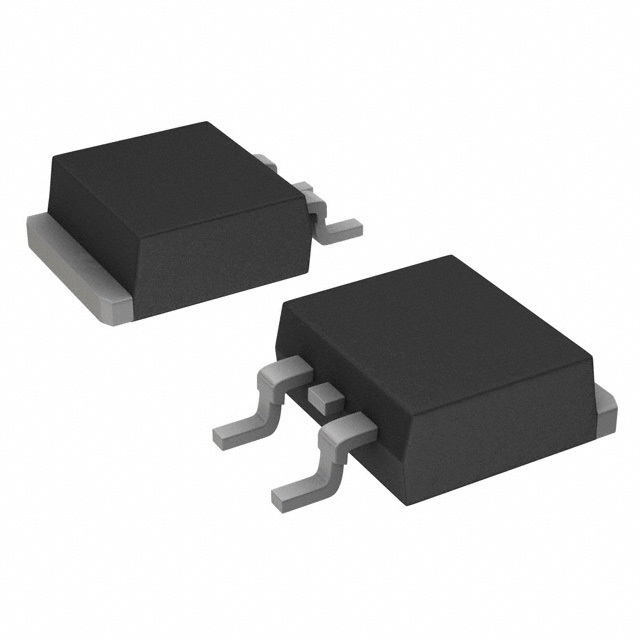

| Supplier Device Package | D²PAK (TO-263) |
| Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 100A, 10V |
| Power Dissipation (Max) | 333W (Tc) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Package | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) (Max) @ Vds | 7350 pF @ 75 V |
| Gate Charge (Qg) (Max) @ Vgs | 100 nC @ 10 V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 130A (Tc) |
| Base Product Number | FDB075 |
